NF Single Corn Flour Milling Machine

  • Corn Flour Milling Machine can grind corn, wheat, millet, sorghum, pulses, sorghum, oat, buckwheat, etc.
    Features:
    1.Complete function, low noise, automatic processing
    2.Convenient installation and low cost.
  • Download of Instruction Manual

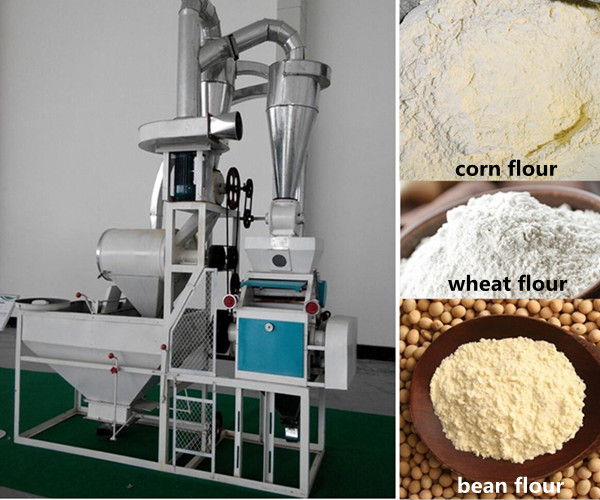

NF single Corn Flour Milling Machine is mainly used in small size of coarse grain flour milling plants. It has the features of complete function, low noise, no dust, high degree of automation, convenient installation and low production cost. It grinds wheat into flour by the grinding roll of the grinder. Then the flour is winnowed and screened by the circular screen. At last, we package the flour and the bran separately.



Corn Flour Milling Machine



Corn Flour Milling Machine




Corn Flour Milling Machine






Corn Flour Milling Machine



Corn Flour Milling Machine working principle and features:
The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.High automation degree, reasonable structure, stable running, reliable features, low energy consumption, high efficiency, low production cost, good benefit, low noise, no dust, safety and sanitation, energy conservation and environmental protection, easy installation and convenient maintenance.


Corn Flour Milling Machine Technical parameter:

Model

Yield

Roll Specificationmm

Fast Roller Speedr/min

Power

Weight

Outline Size

KG/H

(kw)

KG

(mm)

NF-2235

300-350

Ф222×350

650

7.5+3

300

2200x800x4000

NF-2240

400-500

Ф222×400

650

11+3

700

2200x900x4000

NF-2250

500-550

Ф222×500

650

15+3

800

2200x1000x4000
