Corn Snack Food Machinery

Product properties
  • Summary:Corn Snack Food Machinery: Grinding→mixing→extruding→drying→flavoring→cooling→packaging



Corn Snack Food Machinery or Corn Snack Food Processing Plant:

Corn puff snack food machine adopts corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through frication of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.

Corn Snack Food Machinery flow chart:

grinding→mixing→extruding→drying→flavoring→cooling→packaging

Corn Snack Food Machinery

Corn Puffed Snack Food Production Line Flow chart diagram:

Our engineer could design the layout drawing according to your dimension of the factory for the snacks food machine.
corn snack food machinery


Equipment list in the Corn Puffed Snack Food Production Line:

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine



1) Mixer of Corn Puffed Snack Food Production Line

Corn Puffed Snack Food Production Line
Name
Mixer
Usage
To mix the raw materials evenly, fast speed, no leakage.
Type
Vertical and horizontal type
Motor
3kw, 4kw, 7.5kw etc.
Capacity
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material
stainless steel, carbon steel



2) Extruder of Corn Puffed Snack Food Production Line

Corn Puffed Snack Food Production Line
Name
Twin screw extruder
Usage
To extrude the raw materials and make them to the required shape and size of the corn snacks food pellets by mould
Model
DSE65, 70,  85
Motor
22kw, 37kw, 75kw
Capacity
100kg/h to 500kg/h
Material
Screw materials 38CrMoAl
stainless steel, carbon steel



                                         Technical parameter for snacks food extruder

Model
Installed Power
(kw)
Power Consumption (kw)
Capacity
(kg/h)
Dimension
(m)
DSE65
74
52
100-150
17*1.2*2.2
DSE70
95
70
200-250
20*1.5*2.2
DSE85
139
104
300-500
28*3.5*4.3



3) Dryer of Corn Puffed Snack Food Production Line

Corn Puffed Snack Food Production Line
Name
Dryer (oven)
Usage
the expanded food go through the “s” passage, to be dried to increase the self life.
Type
electrical, steam, gas fired, diesel fired heating type
Model
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10
Capacity
100kg/h to 10 ton/h
Material
stainless steel, carbon steel
Corn Puffed Snack Food Production Line
Corn Puffed Snack Food Production Line

4) Flavoring Machine of Corn Puffed Snack Food Production Line

Corn Puffed Snack Food Production Line
Name
Flavoring machine
Usage
To mix the oil and flavors on the surface of the snacks food
Type
single and double flavoring drum
Motor
0.75kw
Capacity
100kg/h to 500 kg/h
Material
stainless steel



5) Packing Machine of Corn Puffed Snack Food Production Line

To packing the puffed snacks food into the plastic bags with required weight.

Corn Puffed Snack Food Production Line
Corn Puffed Snack Food Production Line



Corn Snack Food Machinery End Products:

Corn Snack Food Machinery

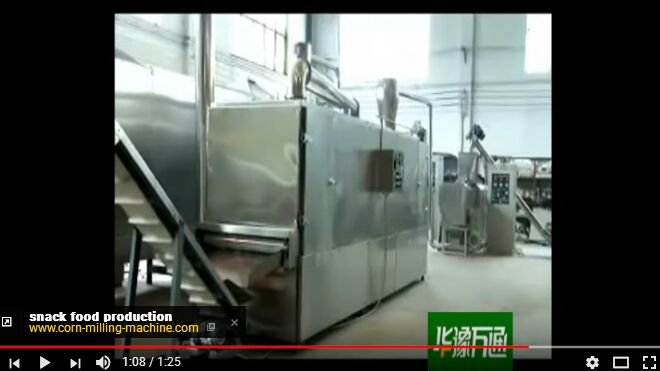

VIDEO:

Snack Food Processing Line
