YMSJ Corn Grits Grinder

Product properties
  • Summary:Corn Grits Grinder: It is the core equipment for producing corn grits. It has high corn grits yield.

YMSJ super fine Corn Grits Grinder introduction:

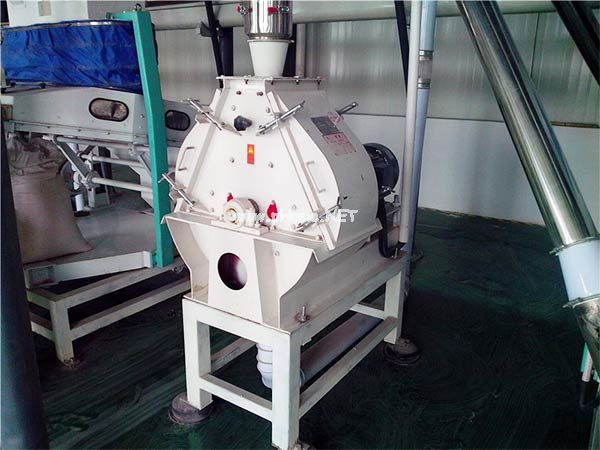

Corn grits grinder or corn grits grinding machine, corn grits milling machine, is the core equipment for producing corn grits.
It has high grits yield.

Corn Grits Grinder Working principle:
This Corn Grits Grinder consists of rotor, upper and lower casing, pelletizing chamber, kneading toothed plate, sieve plate, motor and rack. When the raw material enters into the pelletizing chamber, under the strike and shearing effect of the professional shear type blade, the cut material kneads and strikes with the sieve plate by the centrifugal drive, which makes the granules surface smooth and makes them become arc shape. The material granules which are smaller than the sieve pore are discharged out of the machine, and granules which are bigger than the sieve pore continue to be cut and stroke until they can pass the sieve pore.



Corn Grits Grinder Technical Parameter:

Model

Power

Yield

Weight

Rated Voltage

Size

kw

kg/h

kg

V

mm

YMSJ32x16

7.5

1200

200

380

1100x1100x1400

YMSJ40x18

11

1500

320

380

1200x1200x1500

YMSJ56x40

22

2000

500

380

1300x1300x1600

YMSJ60x60

45

5000

750

380

1450×1400×1700


Corn Grits Grinder end products:

Uniform granularity, bright color and smooth surface.
Strong market competitiveness.
Corn Grits Grinder
